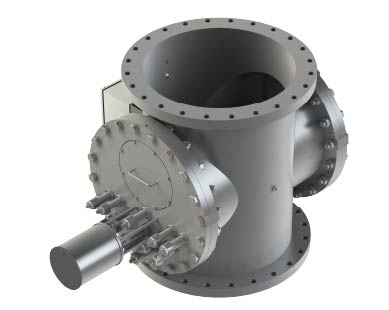

The compact DeltaLine UV series features ‘in-one-line’ positioning of the inlet and outlet connections resulting in compactness of the system and a very low headloss. The UV lamps are high power Medium-Pressure polychromatic types which emit wavelengths between 200 and 400nm. The lamps are positioned perpendicularly to the flow.
DeltaLine UV systems are typically used
inlow UVC transmittance (high-absorbance) and/or high reduction water applications, such as wastewater (both communal
and industrial) and aquaculture.
The centrally positioned sensor in a quartz sleeve monitors the correct output of all the multiple lamps in the DeltaLine. An automatic motor-driven cleaning device, which prevents fouling of lamps and UV sensor quartz sleeves is standard with the DeltaLine UV system.
The CFD (Computational Fluid Dynamics) designed and bioassay tested DeltaLine UV provides optimal protection against waterborne human and plant pathogens, including bacteria, moulds, protozoa and viruses.
The DeltaLine range covers validated flows up to capacities of 6000 m³/h for a single system. There are even DeltaLines installed with a total lamp power up to half a MegaWatt for a single system!
Contact the ‘experts in ultraviolet light’ to fully optimise your new or existing water treatment system with bestUV technology.
